Suitable for frames up to max. 30 x 48 cm: compatible with Langstroth 1/1, Langstroth shallow supers, Dadant (brood and honey supers), DNM/EHM (including shallow), Zander (including shallow), Swiss hive (brood and honey supers), Austrian wide comb, Kuntzsch wide, Gerstung, ZaDant and many more.

NEW: Innovative honey extractor with integrated straining tank that provides high stability during extraction!

ADVANTAGES of the new honey extractor with straining tank:
- HIGH STABILITY DURING EXTRACTION: The weight of the honey collected in the sieve tank stabilizes the extractor during draining and allows the beekeeper to run the extractor at higher speeds — a clear advantage over traditional unweighted extractors.
- TIME SAVINGS: Extracting and straining in a single step — a large portion of the honey already flows from the funnel into the straining tank.
- ECONOMICAL 3-in-1 SYSTEM: 1) Extract honey, 2) Strain honey, 3) Store and fill jars (straining tank available with optional airtight lid and stand).

Description:

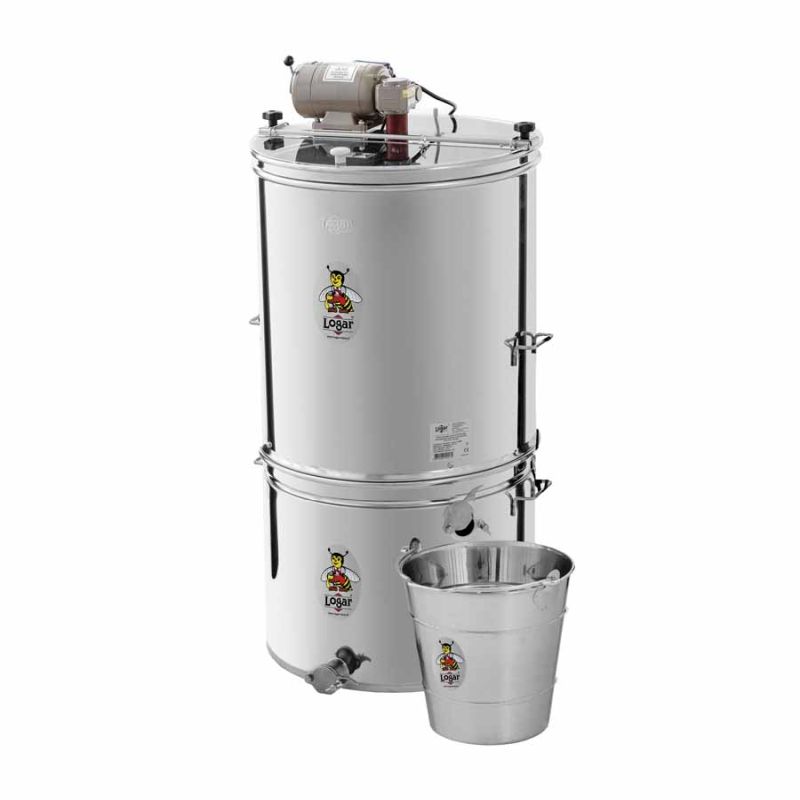

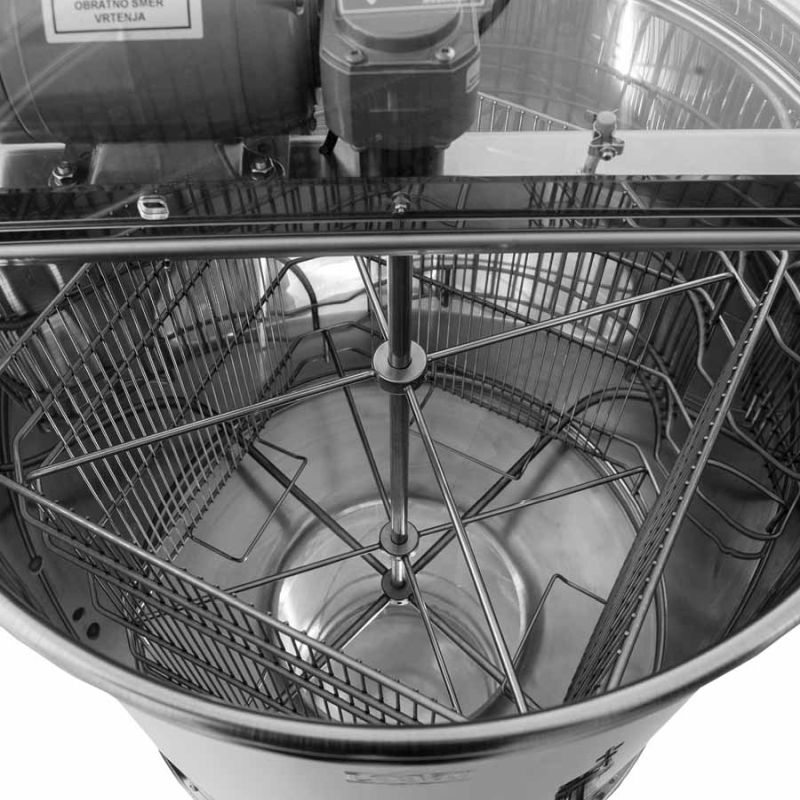

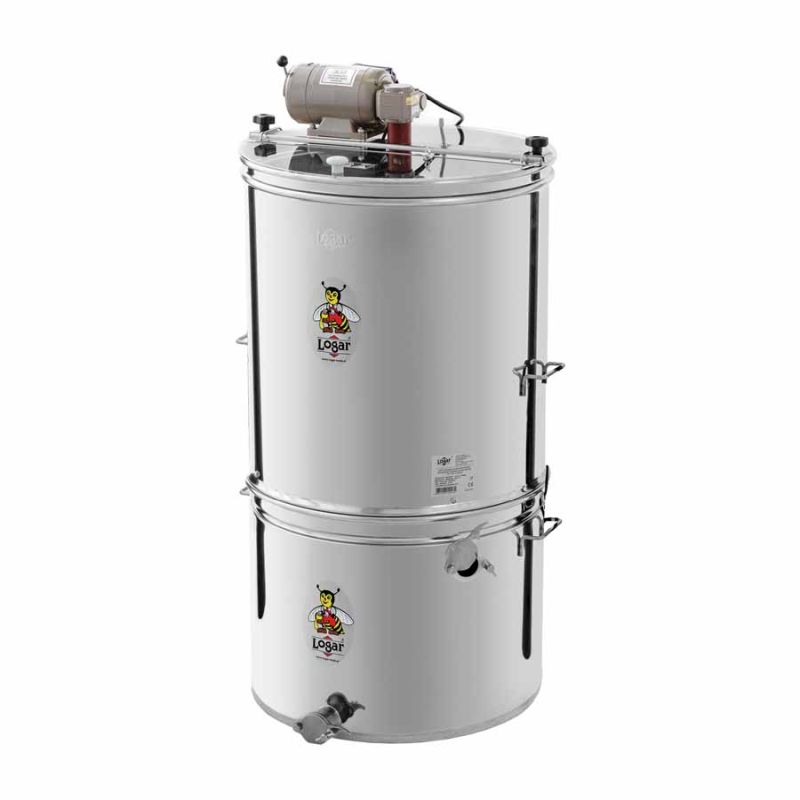

This 4-frame tangential extractor features a motor drive (110 W / 230 V) with an integrated safety switch that automatically shuts off the motor when the lid is opened. The extractor is constructed without a bottom and is set directly onto a straining tank and secured with a clamping ring closure — this prevents tipping and increases stability during extraction. The extracted honey flows directly into the straining tank below.

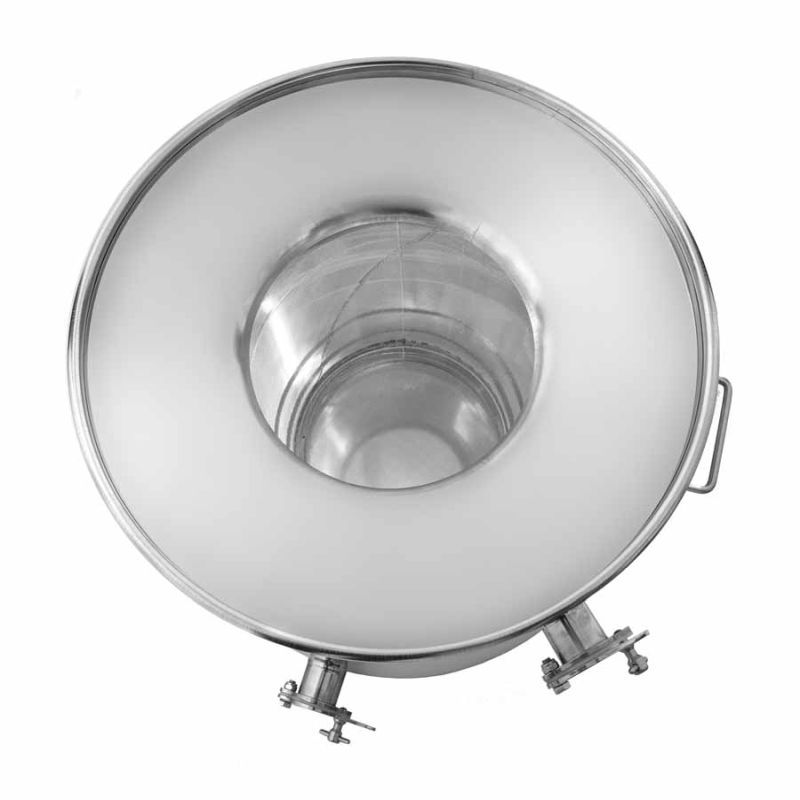

The straining tank is specially designed for straining during extraction. Two welded stainless-steel pinch taps (upper + lower) allow continuous flow of strained honey and near-uninterrupted straining. The fine stainless steel honey sieve (MESCH 26, mesh size 0.71 mm) has a large capacity and a drip rim. Wax residues rise to the surface and can be easily skimmed off; the sieve mesh does not clog even with all-day use. At the end the tank is emptied via the lower pinch tap.

The straining tank can also be used to fill honey jars directly — the pinch tap cuts the honey cleanly. For optimum emptying we recommend using a stand. An airtight lid is available as an accessory; the extractor's adjustable clamping ring can be used for sealing.

Cleaning and safety:
All parts that come into contact with honey are made from food-grade materials. The lid is fitted with special hinges and made of clear acrylic so the extraction process can be observed.

Warranty: 1 year.

Accessories:
- Lid with gasket ø 52 cm (Item no. 2440)
- Stand for tank ø 47 cm, stainless steel, disassembled (Item no. 2477)
- Wax and honey bucket 10 l with handle, stainless steel (Item no. 3772)
- Hanging pocket for uncapping wax (Item no. 7758)
- Voltage converter 12V DC → 230V AC, 300 W (Item no. 4626)

Technical data:

• Drive: Motor 110 W / 230 V with integrated safety switch
• Number of frames (full / shallow): 4 / 8
• Maximum frame size: 30 x 48 cm
• Suitable for: Langstroth 1/1, Langstroth shallow supers, Dadant (brood and honey supers), DNM/EHM (including shallow), Zander (including shallow), Swiss hive (brood and honey supers), Austrian wide comb, Kuntzsch wide, Gerstung, ZaDant and many more.
• Mesh area (straining tank): 30 x 41 cm
• Inner diameter of kettle & straining tank: 52 cm (outer 55 cm)
• Capacity of straining tank: approx. 100 kg
• Height of upper pinch tap: 28 cm
• Fine honey sieve: stainless steel mesh MESCH 26, mesh size 0.71 mm
• Total height of extractor with straining tank: 110 cm
• Extractor type: Tangential extractor
• Made in EU (Slovenia)
• Type: LTM 4S
• Material: Stainless steel W.No. 1.4301 / AISI 304
