Suitable for: Honey and other viscous liquids. Adjustable fill quantities from 30–2,000 g – ideal for semi-automatic jar filling.

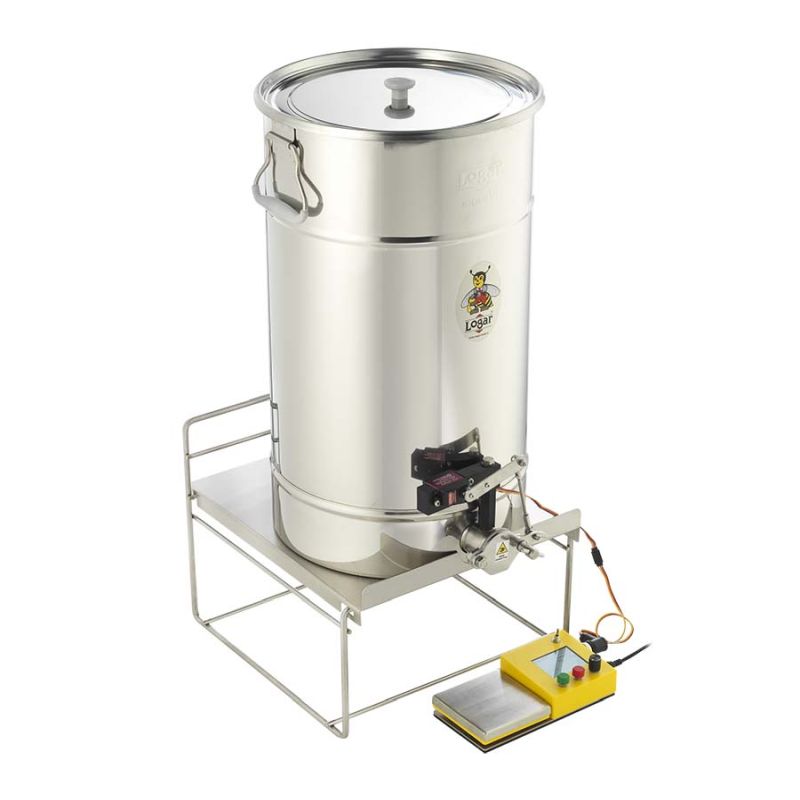

Affordable semi-automatic honey filling system

Components:
- Filling system with weighing and control unit with color display, servo mechanism and power supply
- 50 kg filling tank with sloped bottom
- Three-step filling stand in stainless steel
The filling system is mounted on our 50 kg filling tank with sloped bottom for smoother flow. A servomotor mounted on the outlet line controls the closing of the pinch-valve cover. The honey filler is designed for semi-automatic filling of honey or other viscous liquids.

Filling starts automatically when an empty jar is detected using the stored tare value. The fill quantity is measured by an integrated external scale under electronic control. Filled jars are counted by a counter. Fill quantities can be set between 30 g and 2,000 g. Operation is via a 2.8" color monitor and an extensive settings menu. The filling process is fully hygienic and easy to operate; constant monitoring of the outlet valve is not required. Users can close lids and apply labels while filling continues.

FILL QUANTITIES: 30 - 2,000 g
FILL ACCURACY: ± 5 g
OPERATING MODES: Manual / Automatic
MENU for device control: available in German as well

ADVANTAGES:
- Extensive menus with optional parameters: jar type, outlet-tube opening angle, taring, tolerance (the amount set as surplus during filling to avoid underfilling compared with the jar label), counter and other automatic functions.
- Thanks to the numerous optional parameters, the filling system can be optimally adjusted at any time to the consistency of the honey.
- Preselection of five different jar types.
- Automatic start when a jar is detected.
- Fast, hygienic, contactless changeover between jars.
- Acoustic feedback.
- The filler allows better use of working time. During semi-automatic filling of one jar, the operator can cap and label the previous jar.

The filling tank and the stand are made of stainless steel W.Nr. 1.4301 / AISI 304.

Optional accessories:
- Hermetic lid with clamp ring
- Art. 246001 Height-adjustable shelf for Art. 2460

• Suitable for: Honey and other viscous liquids; Fill quantities: 30–2,000 g
• Fill quantities & accuracy: 30–2,000 g; Fill accuracy ± 5 g
• Operating modes & control: Manual / Automatic; Menu available in German; 2.8" color monitor; extensive parameters (jar type, outlet angle, taring, tolerance, counter, etc.)
• Components: Filling system with weighing and control unit (color display), servo mechanism and power supply; 50 kg filling tank with sloped bottom; three-step stainless steel filling stand
• Features: Servomotor-controlled pinch-valve cover, automatic jar detection by tare, counter for filled jars, hygienic contactless jar changeover, acoustic feedback
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Optional accessories: Hermetic lid with clamp ring; Art. 246001 height-adjustable shelf for Art. 2460
• Product number (Art. No.): 7290
