Suitable for: Zander frames (including shallow Zander). Capacity: 12 frames up to 14–22 cm height or 8 frames up to 24 cm height; maximum top-bar length 48 cm.

Capacity: 12 frames up to 14–22 cm high or 8 frames up to 24 cm high
Inner diameter of the drum: 63 cm

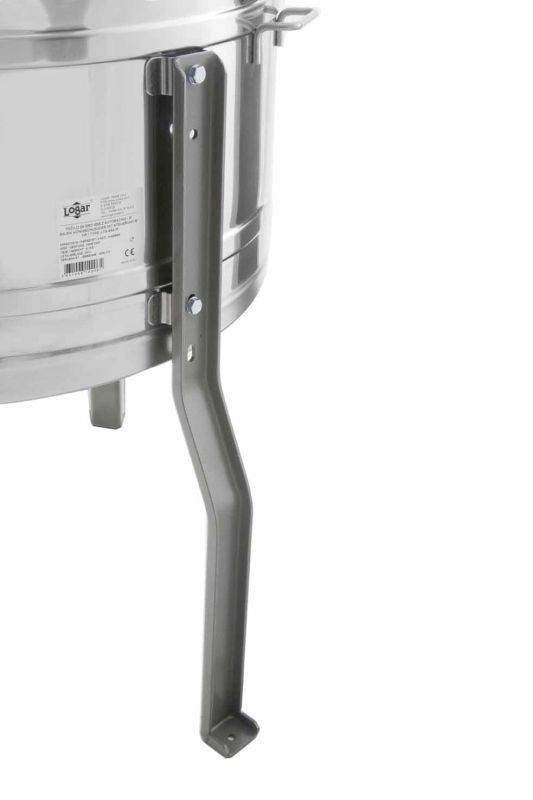

12/8-frame radial honey extractor, hand-cranked in a metal housing with freewheel and back-pressure brake. State-of-the-art design has allowed an innovative construction of the extractor bottom. The drum bottom is seam-welded and sloped toward the outlet. The stainless steel pinch tap is welded at the lowest possible point so all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is transparent acrylic. A special design of the feet ensures stable support for the extractor.

When extracting, the frames do not need to be turned because the centrifugal force and the natural slope of the cells ensure simultaneous, two-sided emptying of the frames.

Allows extracting 12 frames up to 14–22 cm high or 8 frames up to 24 cm high with a top-bar length of 48 cm. Specifically adapted for Zander frames.

Warranty: 2 years

Additional equipment:

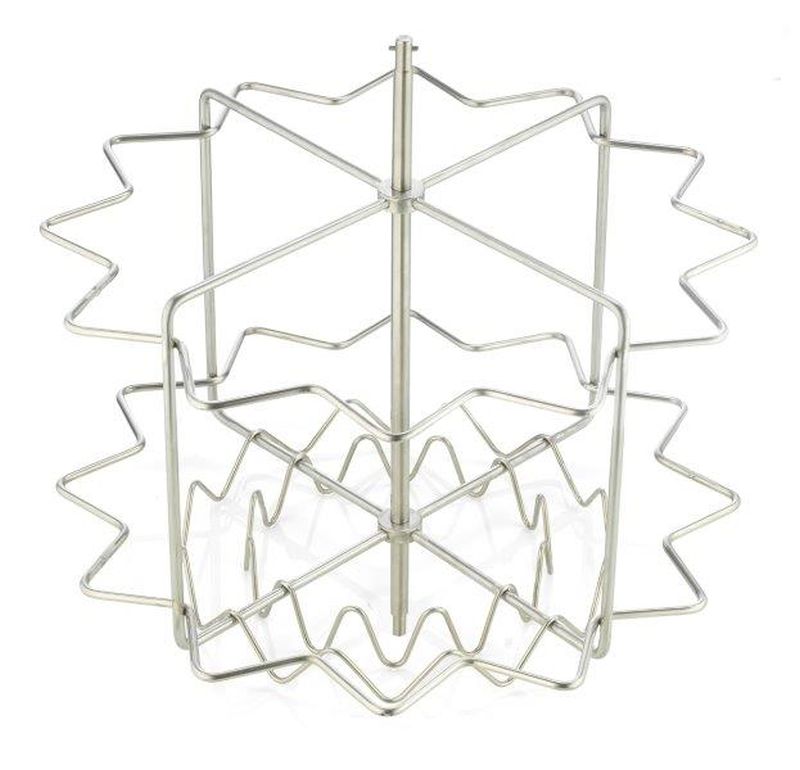

• The radial basket can easily be converted into a tangential basket by inserting four additional hanger grids for tangential operation (Art. No. 7761), allowing you to extract four large frames up to 30 cm high. In this configuration you can hang a cappings bag (Art. No. 7758) inside the basket so honey can drain easily from the cappings.
• Fitting rubber pads (Art. No. 7754) to the extractor feet reduces slipping.
• Bottom heater for extractor Ø 63 cm including installation – our recommendation for faster draining of honey from the extractor, quicker sieving/settling of honey and easier cleaning of the extractor (Art. No. 7127).

Technical data:

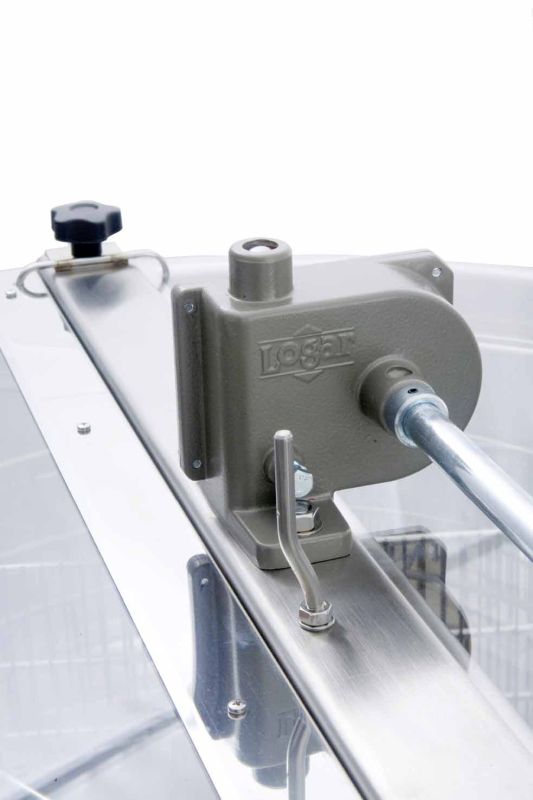

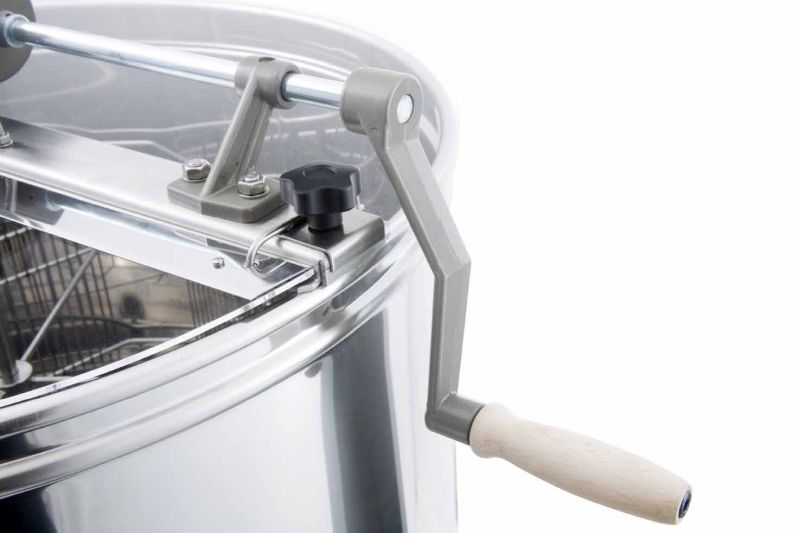

• Drive: hand crank
• Capacity: 12 frames (height 14–22 cm) or 8 frames (height 24 cm); top-bar length 48 cm
• Drum diameter (inner/outer): 63 / 66 cm
• Bottom: seam-welded and sloped toward the pinch tap

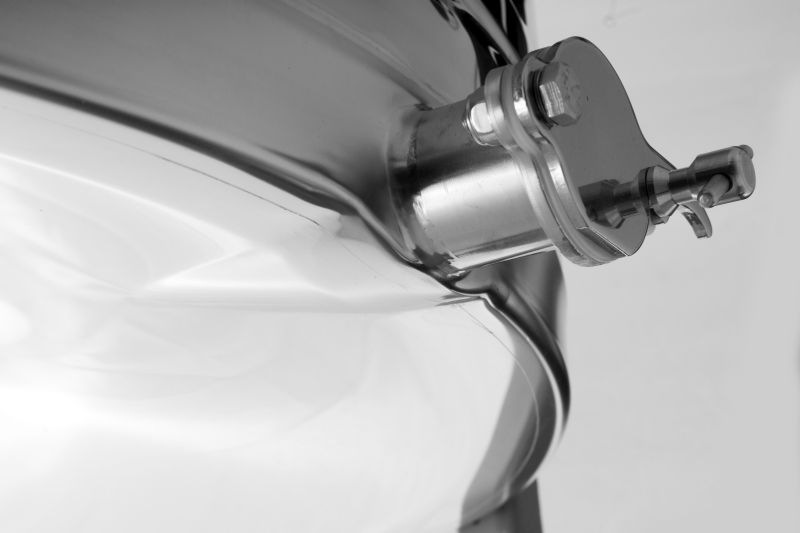

• Honey tap: welded at the lowest possible point
• Extractor type: radial extractor
• Suitable for: Zander (including shallow Zander)

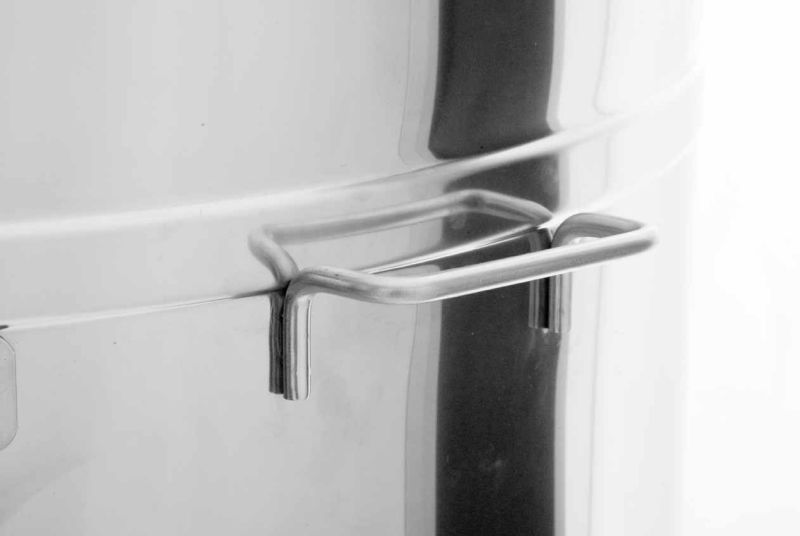

• Handles: two side handles
• Made in: EU (Slovenia)
• Capacity (frames full/shallow): 12/8 (depending on frame height)
• Warranty: 2 years
• Type: LTR 12SR
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
