Suitable for: Langstroth 1/1, Langstroth super, Dadant super, Dadant Blatt super, DNM/EHM, DNM shallow/EHM shallow, Zander, Zander shallow etc. Maximum frame size: up to 21 cm height (with 24 frames) or up to 24 cm height (with 12 frames); top-bar length 48 cm.

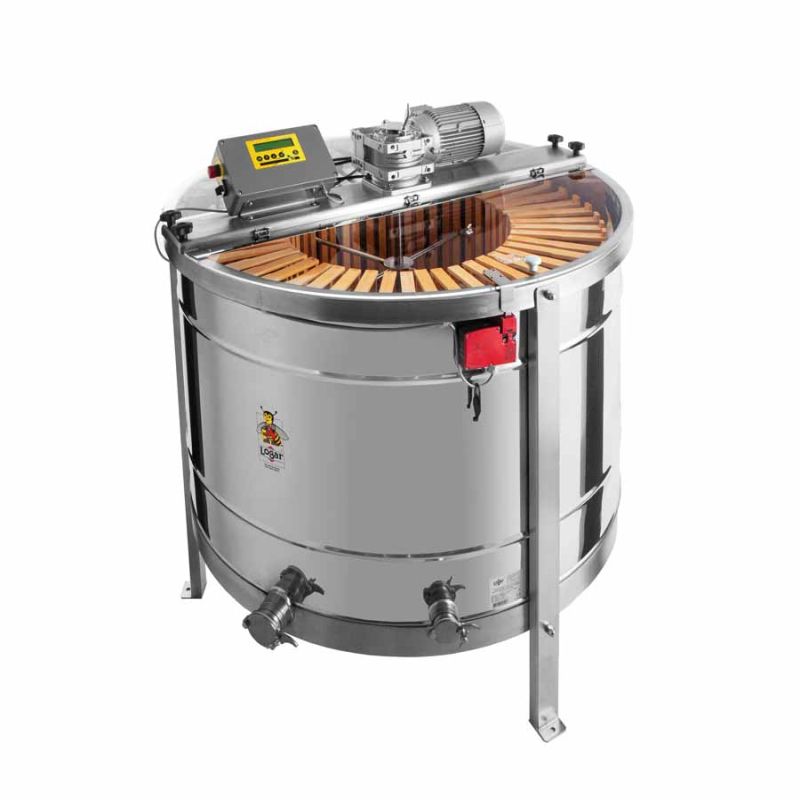

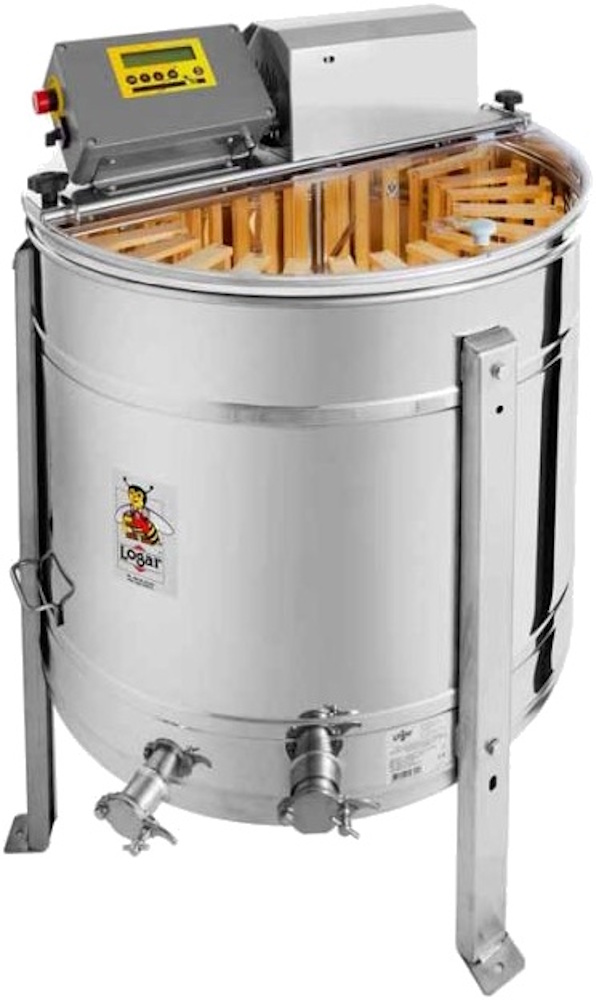

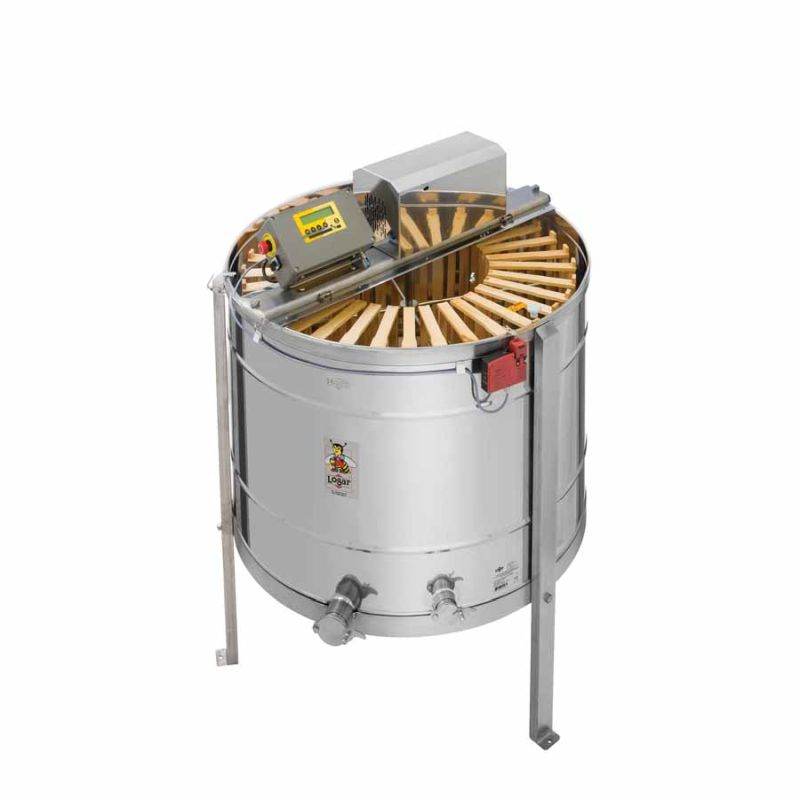

24/12-frame Logar radial honey extractor with 180 W / 230 V motor drive, fully electronic, fully automatic control and integrated safety device that automatically cuts power to the motor when the lid is opened. State-of-the-art drum design: seamless welded and sloped towards the outlet, with two stainless steel squeeze taps 6/4" (one at the lowest possible point) so that all honey drains completely. All honey-contact parts are made from food-grade materials. The lid is made of transparent acrylic so the extraction process remains visible at all times.

Frames do not have to be turned during extraction: centrifugal force and the natural cell angle ensure simultaneous, double-sided emptying of the frames. The fully automatic control allows the entire extraction process to be carried out automatically — you can store up to 8 programs, each program with up to 8 different times, directions and speeds. Operation via membrane keypad and two-line digital LCD display. Compact design, quiet operation and reliable performance. Two side handles facilitate transport and handling.

Warranty: 2 years.

Optional accessories:
• If 230 V is not available: voltage converter 12V DC→230V AC, 600 W (Art. No. 4627) allows operation from a 12 V battery.
• Bottom heater for honey extractor Ø 76 cm including installation — our recommendation for faster honey flow, quicker filtering and easier cleaning (Art. No. 7125).

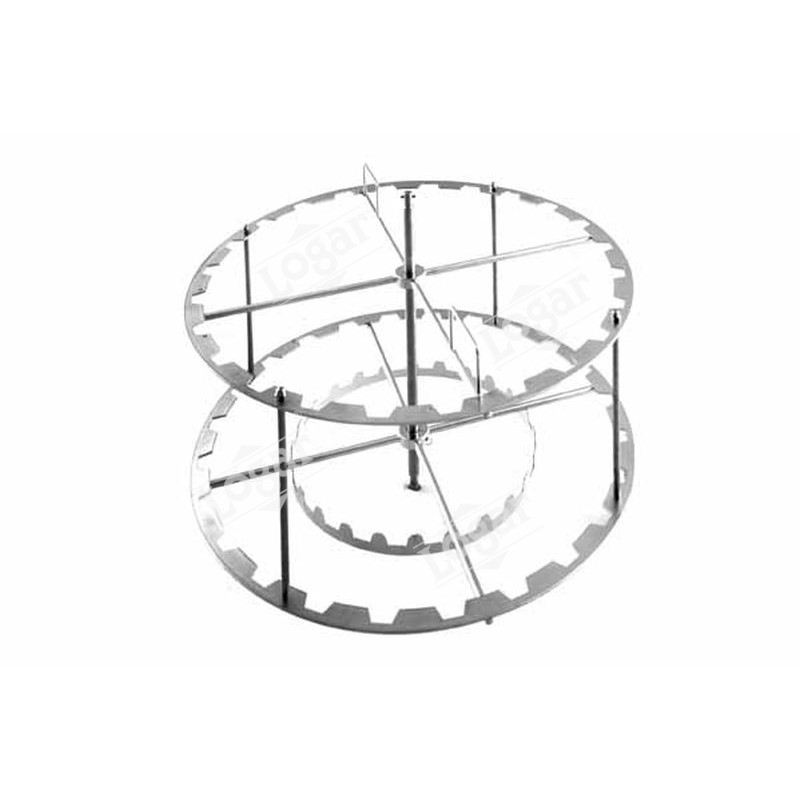

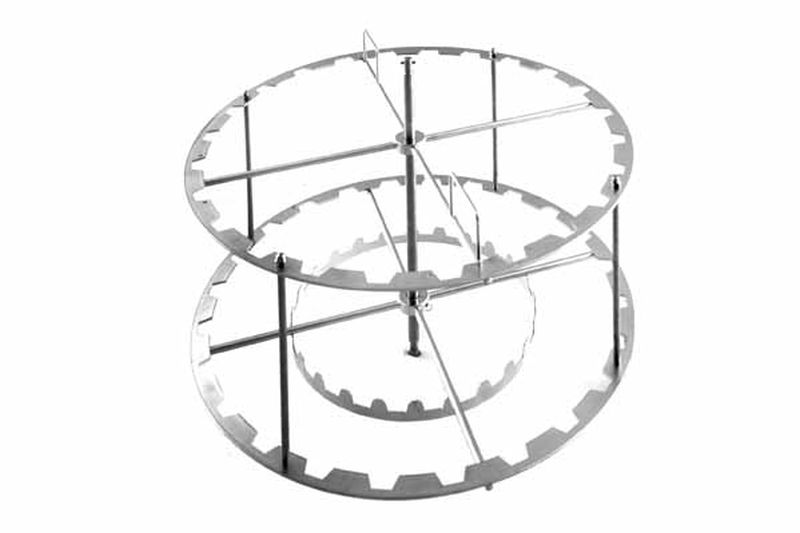

• Radial extraction basket can be converted to a tangential basket using four hanger grids (Art. No. 7761) — then you can extract four large frames up to 30 cm height. In this configuration a hanging pouch for cappings wax can be used (Art. No. 7758) so that honey from the cappings drains directly.
• Rubber pads for the feet reduce slipping of the extractor (Art. No. 7769).

Technical data:

• Drive: fully automatic program control with 180 W / 230 V motor (program full-automatic).
• Number of frames (deep / shallow): 12 / 24.
• Maximum frame size: up to 21 cm height (with 24 frames) or up to 24 cm height (with 12 frames); top-bar length 48 cm.

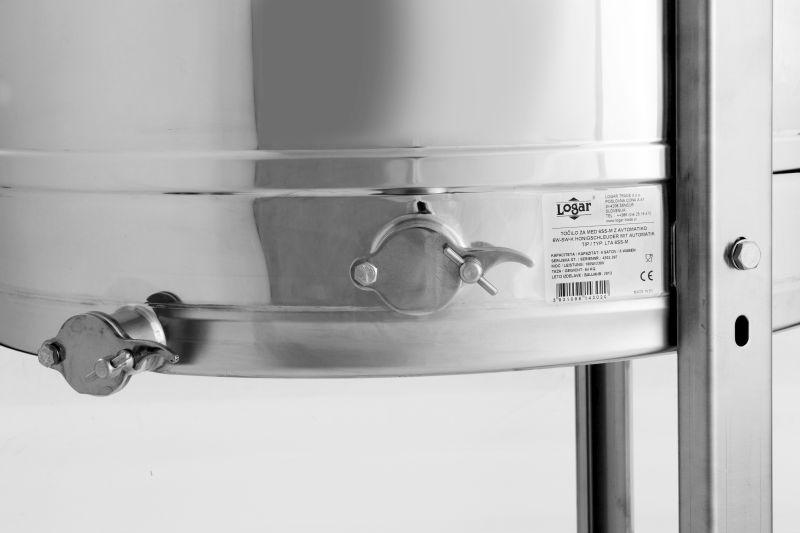

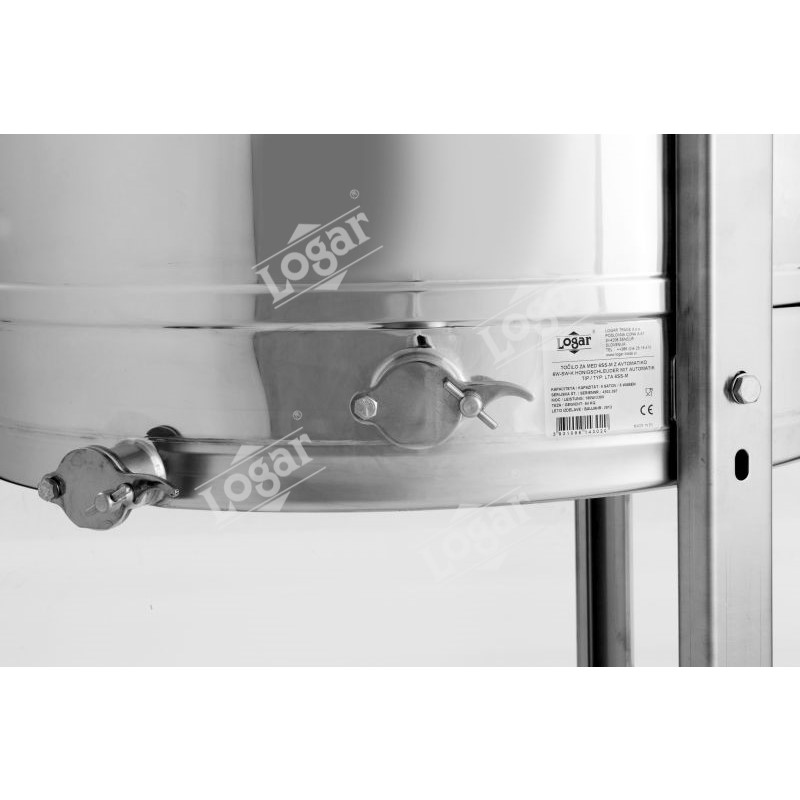

• Drum bottom: seamless welded and sloped toward the squeeze tap; honey tap welded at the lowest possible point; honey taps: 1x Ø 38 mm + 1x Ø 42 mm (squeeze tap 6/4").
• Drum diameter (inside/outside): 76 / 79 cm; inner diameter of the drum: 76 cm.
• Total height (with feet / with drive): 112 / 132 cm; drum height (without / with drive): 73 / 93 cm; height from floor to honey tap: 39 cm.
• Suitable for: Langstroth 1/1, Langstroth super, Dadant super, Dadant Blatt super, DNM/EHM, DNM shallow/EHM shallow, Zander, Zander shallow etc.

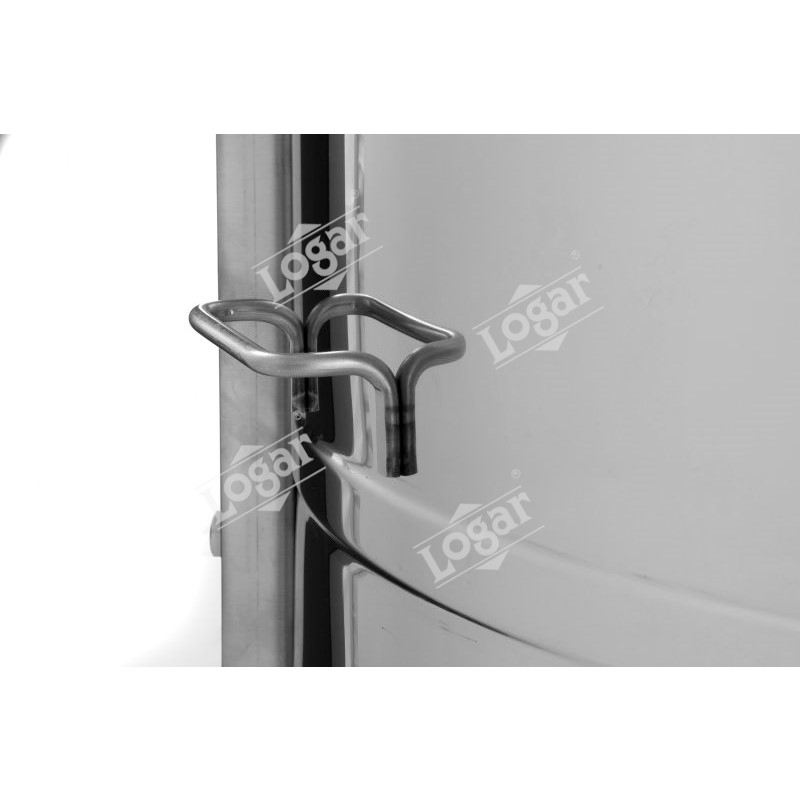

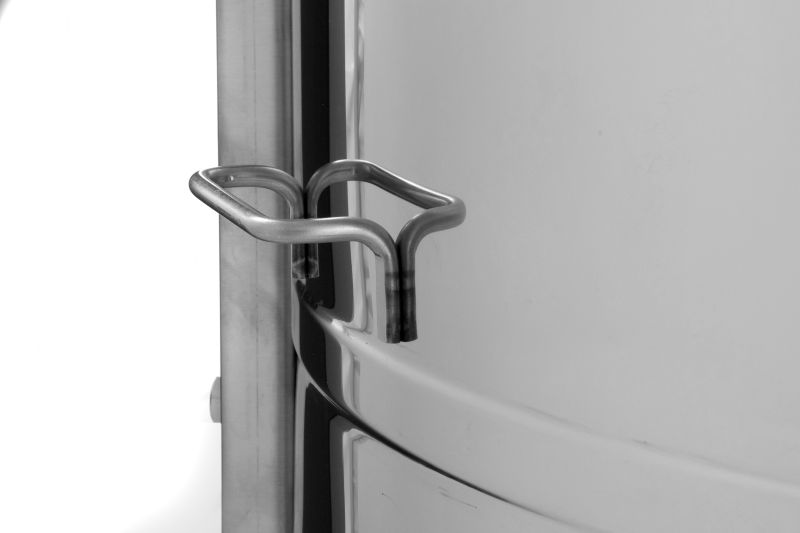

• Handles: two side handles.
• Extractor type: radial extractor.
• Made in EU: Slovenia.
• Type: LTA 24SR.
• Material: stainless steel W.Nr. 1.4301 / AISI 304.
