Suitable for: Langstroth 1/1, DNM/EHM, DNM shallow/EHM shallow, Langstroth honey super, Zander, Zander shallow, Austrian wide comb, Kuntzsch wide, Gerstung and many more. Maximum frame: 26 x 48 cm (height 26 cm, top-bar length 48 cm).

Capacity: 12 frames up to a height of 26 cm
Drive: Motor drive 180 W / 230 V with fully automatic control
Inner diameter of the tank: 76 cm

24/12-frame radial honey extractor with 180 W / 230 V motor drive, fully automatic control and integrated safety device that automatically stops the motor when the lid is opened. State-of-the-art technology enabled an innovative design of the extractor bottom. The bottom of the tank is welded seamless and sloped toward the outlet. The extractor is fitted with two stainless squeeze/pinch valves 6/4'', one of which is installed at the lowest possible point so that all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic glass.

The fully automatic control lets you freely select rotation speeds and times. You can set and save up to 8 different programs. Each program can be configured with up to 8 different times, directions and rotation speeds. Operation is simple via a membrane keypad.
Compact design, quiet operation and reliable performance.

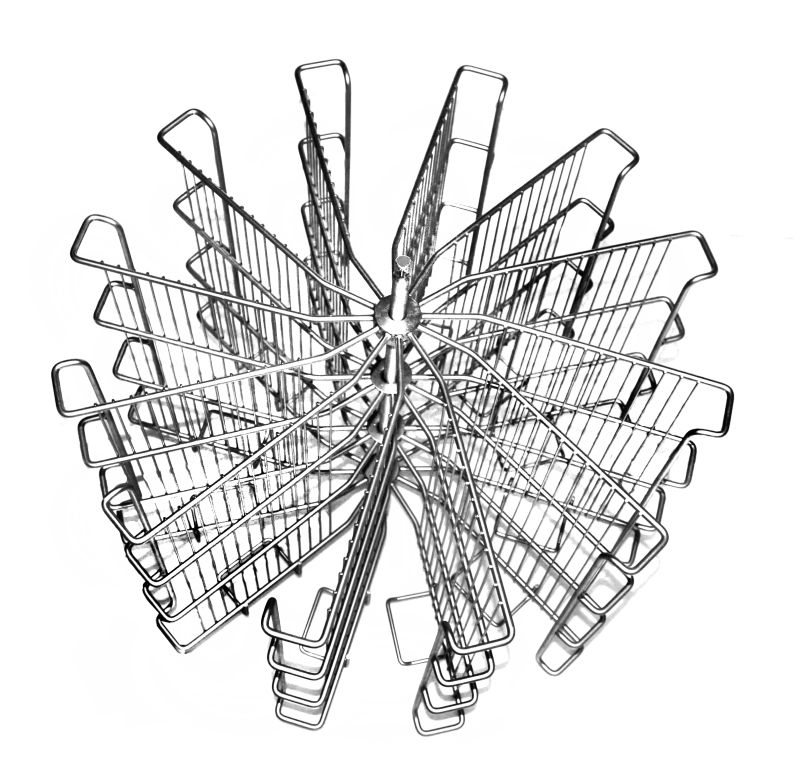

During extraction the frames do not need to be turned, as the centrifugal force together with the natural slope of the cells ensures simultaneous extraction from both sides. The extraction basket is constructed so the frame leans against the hanging grid during rotation, preventing damage to the frames.

Allows extraction of frames up to a height of 26 cm and a top-bar length of 48 cm.

Warranty: 2 years

Optional equipment:
• Floor heating for 76 cm extractor incl. installation – our recommendation for rapid draining of honey from the extractor, faster filtering and easier cleaning of the extractor, Art. No. 7125
• If 230 V is not available, the voltage converter 12V DC–230V AC, 300 W (Art. No. 4626) allows use of the extractor with a 12 V accumulator/battery.

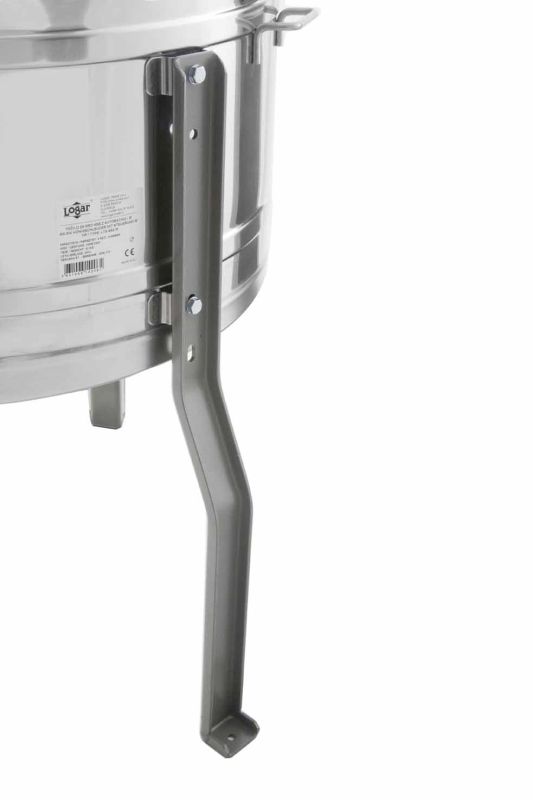

• Fitting rubber pads (Art. No. 7769) to the extractor feet reduces slipping.

Technical data:

• Type: LTA 12SRM
• Capacity / Number of frames: 12 frames (deep/shallow 12/12)
• Maximum frame: 26 x 48 cm (height 26 cm, top-bar length 48 cm)
• Suitable for: Langstroth 1/1, DNM/EHM, DNM shallow/EHM shallow, Langstroth honey super, Zander, Zander shallow, Austrian wide comb, Kuntzsch wide, Gerstung and more
• Drive / Control: Fully programmable automatic control with 180 W / 230 V motor; fully automatic control with up to 8 storable programs, each program up to 8 times/directions/speeds; operation via membrane keypad; integrated safety shut-off when the lid is opened
• Tank diameter (inside/outside): 76 / 79 cm (inner diameter 76 cm)
• Heights: Tank height without/with drive 73 / 92 cm; overall height with feet / with drive 112 / 125 cm; height from floor to honey tap 39 cm
• Bottom / honey tap: Bottom seamless welded and sloped toward the squeeze valve; honey tap welded at the lowest possible point; honey outlets Ø 38 mm and Ø 42 mm; two stainless squeeze/pinch valves 6/4''
• Grid area: 26 x 40 cm (hanging system prevents damage to frames)

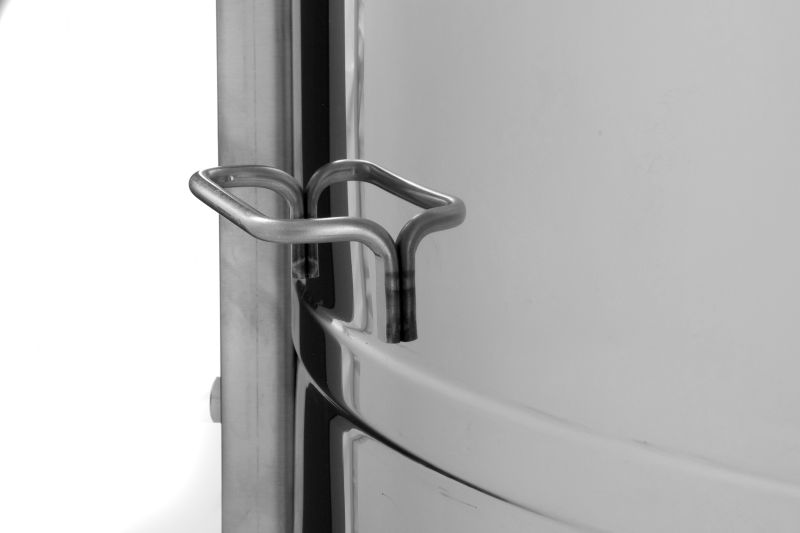

• Handles: two side handles
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Extractor type: Radial extractor
• Made in: EU (Slovenia)
• Warranty: 2 years
