Suitable for: Dadant honey super, Dadant Blatt honey super, DNM shallow / EHM shallow, Langstroth honey super and Zander shallow. Maximum frame dimensions: 16.5 x 48 cm.

Pocket size: 17.5 x 44 x 4.5 cm
Drive: Motor drive 180 W / 230 V with fully automatic control
Inner diameter of the drum: 76 cm

Innovative self-reversing extractor with double pockets — ideal for extracting a large number of shallow frames on a small diameter.

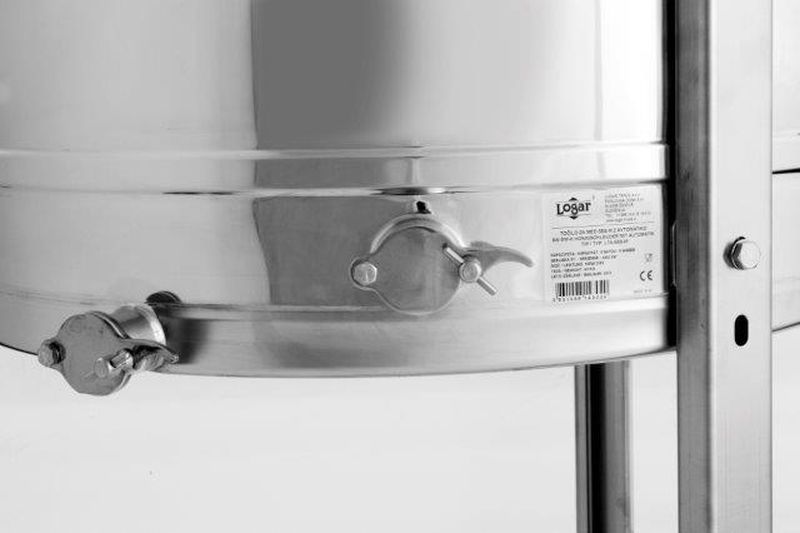

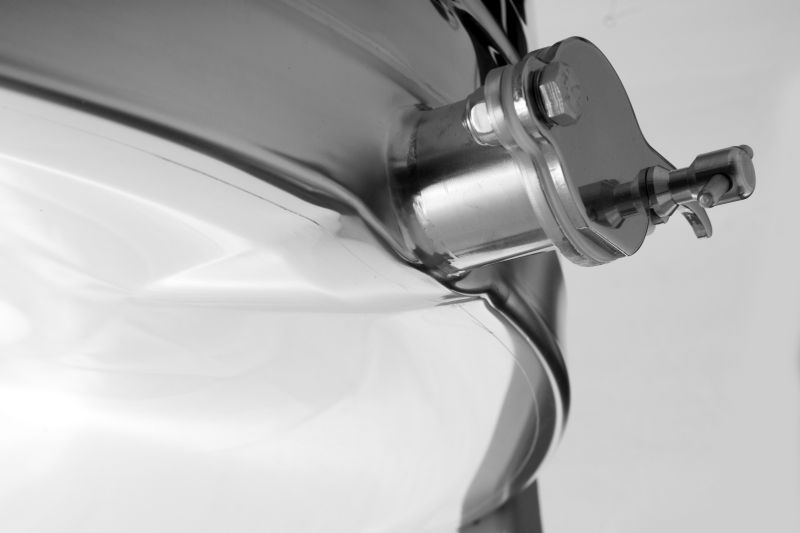

The Logar 12-frame self-reversing extractor is fully electric and features a fully automatic control plus a safety switch that immediately shuts off the motor when the lid is opened. The frame pockets are double-sided; a sheet metal panel between the pockets directs the honey flow. The drum bottom is modernly shaped, seamlessly welded and sloped towards the outlet. The stainless steel pinch valve is welded at the deepest possible point so that all honey can be drained. All honey-contacting parts are made from food-grade materials. The lid is made of transparent acrylic glass. A special design of the feet ensures high stability.

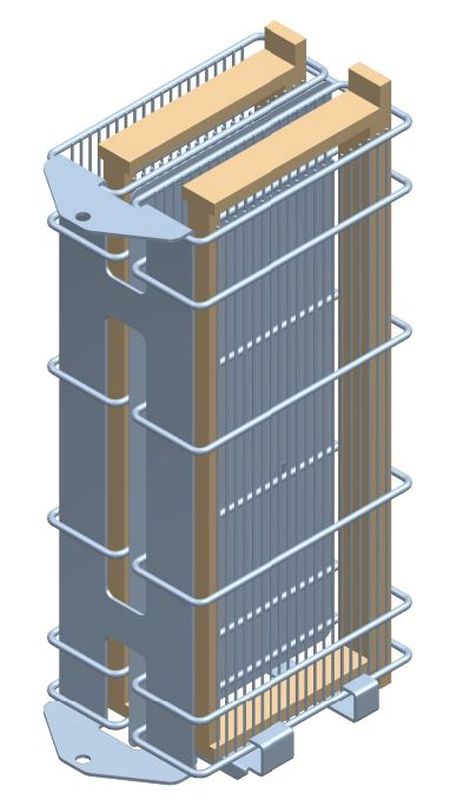

The frame pockets are made of vertical grille rods with an appropriate spacing so that the frames are not damaged during extraction. The pockets are connected to each other by a special mechanism. Thanks to the design, honey does not accumulate inside the pockets, so the frames are dry after extraction.

The machine allows extraction of 12 frames with a maximum height of 16.5 cm and a top-bar length of up to 48 cm.

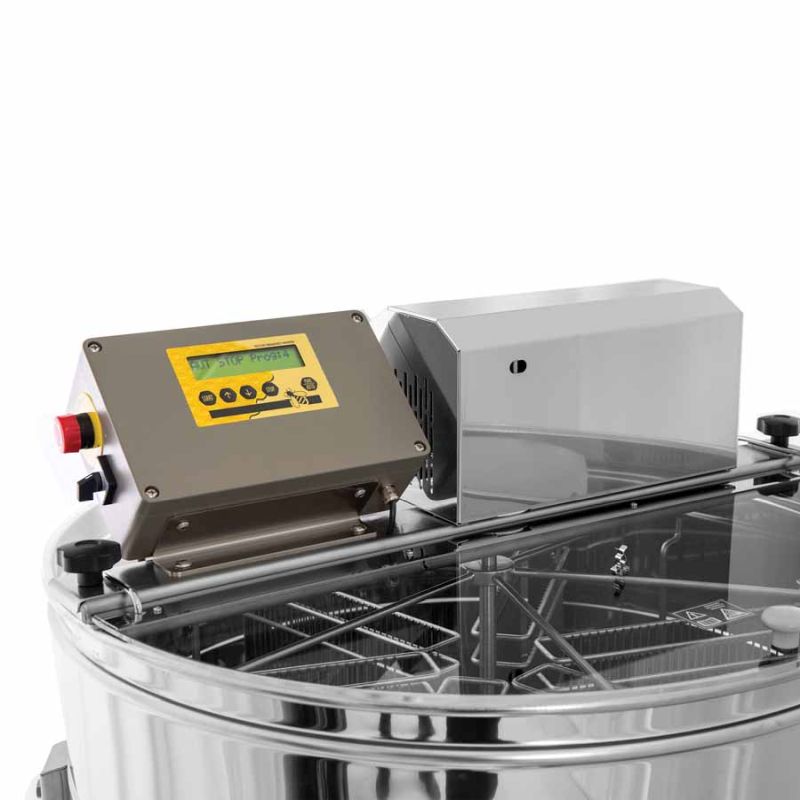

The fully automatic control permits automatic execution of the entire extraction process so you can attend to other tasks in parallel. Operation is via a membrane keypad; up to 8 programs can be stored, each with 8 different times, directions and speeds. Default programs are pre-set and can be adjusted at any time.

Compact design, quiet operation and reliable performance. Warranty: 2 years.

Optional accessories:
- Art. 7754, rubber feet for extractor with M8 screw — reduce slipping of the extractor.
- Art. 4627, voltage inverter 12V DC → 230V AC, 600 W — enables operation of the extractor from a 12V battery/accumulator.
- Replacement tangential basket with additional central axle for extracting large frames up to 30 cm in height.

• Drive: Fully automatic program control with motor 180 W / 230 V
• Number of frames (full / shallow): 0 / 12
• Bottom: seamless welded and sloped towards the pinch valve
• Maximum frame: 16.5 x 48 cm
• Suitable for: Dadant honey super, Dadant Blatt honey super, DNM shallow / EHM shallow, Langstroth honey super, Zander shallow
• Honey tap: welded at the lowest point
• Made in: EU (Slovenia)
• Cassette size: 17.5 x 44 x 4.5 cm
• Drum diameter (inner / outer): 76 / 79 cm
• Extractor type: self-reversing extractor
• Type: LTA 12SSD
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
