Suitable for: Beekeepers with approximately 20–100 colonies. Basket holds about 23 frames (depending on frame size); internal basket dimensions: 33 x 53 x 49 cm.

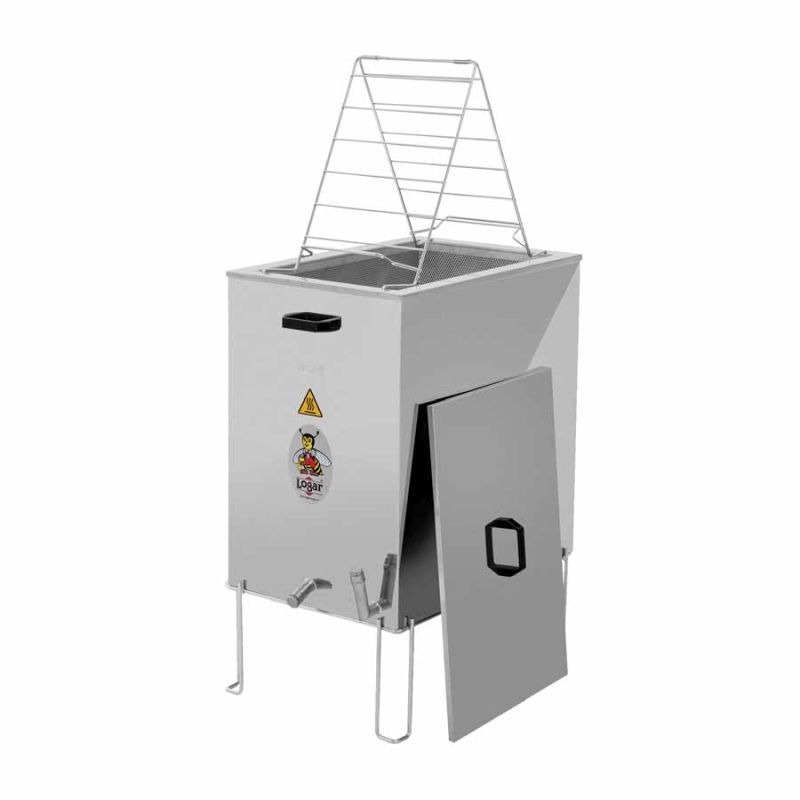

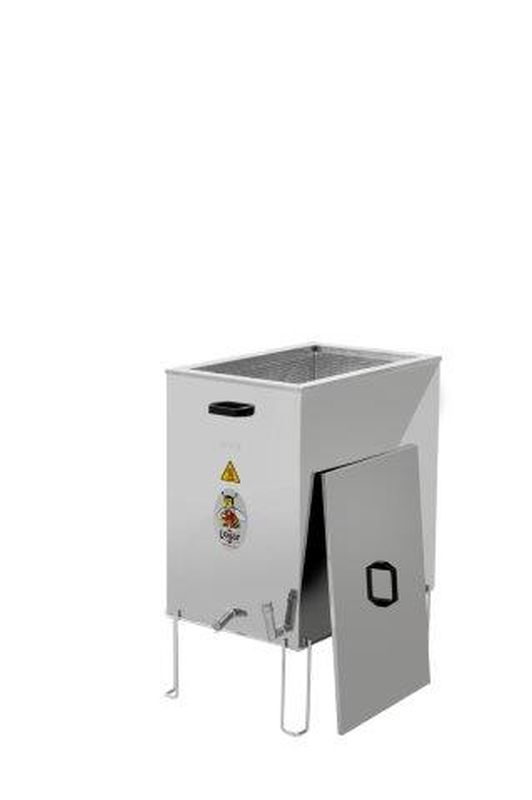

The wax melter is designed for melting old combs. Steam melting is quick, simple and effective. Before melting, pour water into the wax melter, place approx. 23 frames (the exact number depends on the frame size) into the perforated comb basket and bring the water to a boil with a gas burner. The boiling water produces steam which rises into the perforated basket and melts the combs.

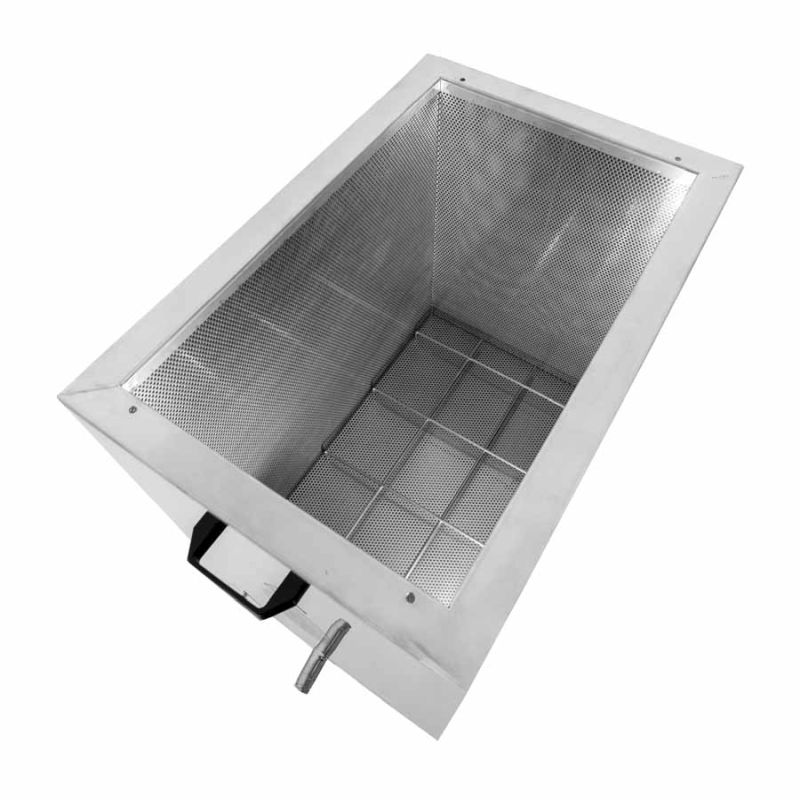

The pure wax drains through the perforated basket floor and then flows through the outlet pipe into an outer container, while debris remains in the perforated comb basket. This process also cleans and disinfects the frames. A melting cycle takes about 30 minutes. Cappings wax can also be melted in the wax melter.

Make sure the bottom of the wax melter is always covered with water; this can be checked at the inlet pipe.

A gas burner is used to heat the water in the wax melter; we place the burner under the melter. Solid fuels can also be used. The gas burner is not included.

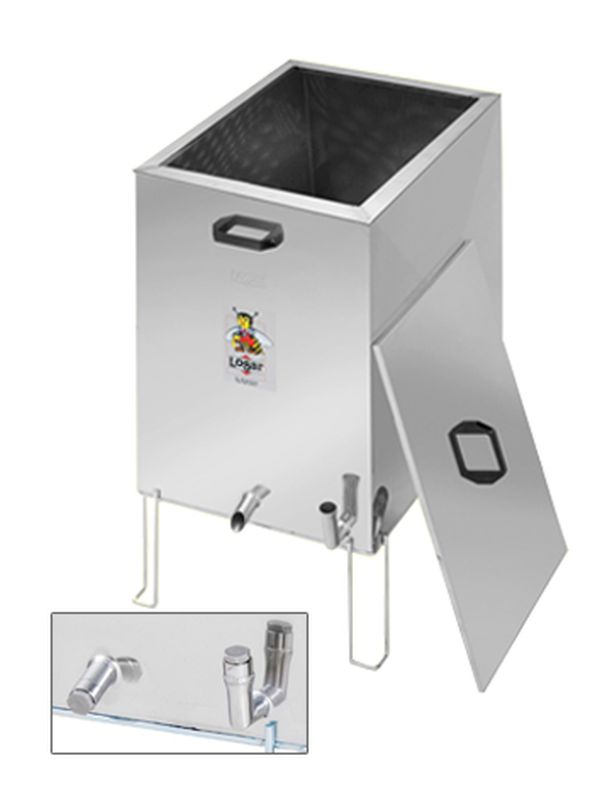

The outer container of the wax melter can also be used to disinfect beekeeping tools, equipment and frames. To do this, the wax outlet pipe must be closed with a blanking plug.

This wax melter is very popular with beekeepers. We recommend it for beekeepers with 20–100 colonies.

Optional accessories:
- Item 3308: 8 kW cast-steel gas burner without flame-failure safety device, with ring
- Item 3309: 8 kW cast-steel gas burner with flame-failure safety device and ring
- Item 3307: Hose for gas burner 1.5 m + regulator + wrench
- Item 3290: Wax cleaning fleece 2.6 m²

• Material: stainless steel W.No. 1.4301 / AISI 304
• Overall dimensions: 41 x 61 x 85 cm (including detachable stand)
• Basket (internal): 33 x 53 x 49 cm; capacity: approx. 23 frames (depends on frame size)
• Recommended for: 20–100 colonies
• Operation: heated with gas burner (not included); solid fuels can also be used
• Function: steam melting of old combs and cappings wax; pure wax drains through the perforated basket floor into the outer container
• Melting time: approx. 30 minutes per cycle
• Outer container also usable for disinfecting beekeeping tools (close outlet pipe with blanking plug)
• Item no. (SKU): 3306
